High-Power Femtosecond Laser

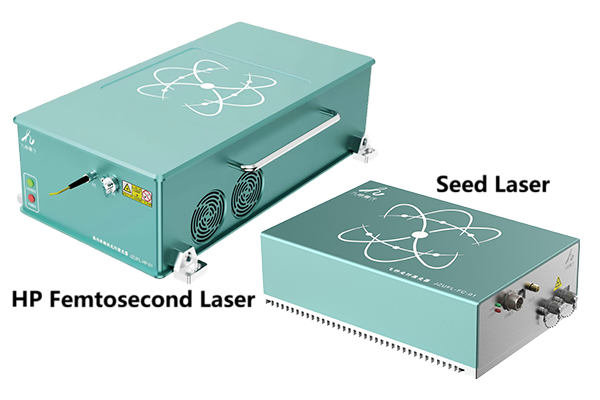

The JZUFS-FC-01 Femtosecond Seed Source and JZUFL-HP-01 High-Power Femtosecond Laser are developed based on proprietary intellectual property. Utilizing a modular design philosophy, these laser products incorporate refined cavity parameter management, distributed chirp management, self-similar amplification combined with chirp pre-amplification, and automated electronic and thermal control schemes. Through these advanced technologies, the systems achieve superior performance, excellent environmental adaptability, and full adjustability of key operational parameters.

Due to their ultra-short time scales and ultra-high peak power, ultrafast lasers have attracted significant attention across quantum optics, optical communications, super-resolution imaging, spectroscopy, biomedicine, and precision processing. Ultrafast laser technology represents a major research frontier worldwide and largely defines the development direction of modern laser technology.

Business Inquiry >>

Product Advantages

Femtosecond-Level Pulse Output (minimum 50 fs – 90 fs)

Distributed Chirp Management for near Fourier-transform-limited pulse output

High-Power Adjustable Output with full polarization-maintaining (PM) fiber coupling

Modular Design with multi-parameter adjustability and automated electronic/thermal control

Superior Environmental Adaptability

Product Advantages

Femtosecond-Level Pulse Output (minimum 50 fs – 90 fs)

Distributed Chirp Management for near Fourier-transform-limited pulse output

High-Power Adjustable Output with full polarization-maintaining (PM) fiber coupling

Modular Design with multi-parameter adjustability and automated electronic/thermal control

Superior Environmental Adaptability

Application Fields

01 Quantum Optics, Photonic Quantum Computing, Optical Communications

02 Micro/Nano-Fabrication, Precision Material Processing

03 Precision Ranging, Optical Frequency Comb Light Sources

04 Super-Resolution Imaging and Spectroscopy

05 Pump-Probe Spectroscopy Systems

06 Asynchronous Sampling Systems

07 Semiconductor Device Testing & Characterization

08 Ultrafast and Nonlinear Process Research



Laser Output Spectrum & Output Pulse Profiles

Application Fields

01 Quantum Optics, Photonic Quantum Computing, Optical Communications

02 Micro/Nano-Fabrication, Precision Material Processing

03 Precision Ranging, Optical Frequency Comb Light Sources

04 Super-Resolution Imaging and Spectroscopy

05 Pump-Probe Spectroscopy Systems

06 Asynchronous Sampling Systems

07 Semiconductor Device Testing & Characterization

08 Ultrafast and Nonlinear Process Research

Laser Output Spectrum

Laser Output Pulse

Specifications

Parameter
Femtosecond Seed Source
JZUFS-FC-01
High-Power Femtosecond Laser
JZUFL-HP-01
Center Wavelength 1560nm 1560nm/780nm
Pulse Duration 80fs 100fs
Repetition Rate 80MHz 60MHz~110MHz
Average Output Power 80mW 500mW/200mW
Polarization Extinction Ratio (PER)  20dB 20dB
Power Stability 0.1(%RMS) 0.2%@8h
Optical Interface FC/APC FC/APC
Number of Channels 1 1 or 2
Output Mode PM Panda Fiber Optic Energy transmission fiber/free space
Electronics Interface SMA/USB SMA/USB
Dimensions 230×150×60mm³ 420×220×125mm³
Operating Temperature 5~40℃ 5~40℃
Operating Humidity 20%~80%RH 20%~80%RH



Specifications

Parameter
Femtosecond Seed Source
JZUFS-FC-01
High-Power Femtosecond Laser
JZUFL-HP-01
Center Wavelength 1560nm 1560nm/780nm
Pulse Duration 80fs 100fs
Repetition Rate 80MHz 60MHz~110MHz
Average Output Power 80mW 500mW/200mW
Polarization Extinction Ratio (PER)  20dB 20dB
Power Stability 0.1(%RMS) 0.2%@8h
Optical Interface FC/APC FC/APC
Number of Channels 1 1 or 2
Output Mode PM Panda Fiber Optic Energy transmission fiber/free space
Electronics Interface SMA/USB SMA/USB
Dimensions 230×150×60mm³ 420×220×125mm³
Operating Temperature 5~40℃ 5~40℃
Operating Humidity 20%~80%RH 20%~80%RH



Service System

Pre-sales Consultation

  • Provide professional pre-sales consultation services to help customers understand product features and advantages.
  • Offer technical support to address inquiries regarding technical details and performance metrics.

Customized Solutions

  • Deliver tailored solutions to ensure the product maximally fulfills specific customer application requirements.

Installation & Commissioning

  • Provide on-site or remote installation guidance and commissioning services based on customer needs to ensure smooth operation.

After-Sales & Maintenance

  • Provide fast-response after-sales technical support to resolve operational issues.
  • Offer regular maintenance services to maintain optimal product performance and stability.
  • Free repair services during the warranty period.
