Dual-Wavelength Femtosecond Laser



The JZUFL-DW-01 Dual-Wavelength Femtosecond Laser is a series-based laser product developed with proprietary intellectual property. Built on a modular design philosophy and high-efficiency frequency-doubling technology, it achieves simultaneous dual-wavelength output in both the 1560 nm and 780 nm bands to satisfy diverse application requirements. Due to their ultra-short time scales and ultra-high peak power, ultrafast lasers have attracted significant attention across quantum optics, optical communications, super-resolution imaging, spectroscopy, biomedicine, and precision processing. Ultrafast laser technology represents a major research frontier worldwide and largely defines the development direction of modern laser technology.

Business Inquiry >>

Product Advantages

Dual-Wavelength Output

Femtosecond-Level Pulse Output (minimum down to 50 fs)

Distributed Chirp Management for near Fourier-transform-limited pulse output

Modular Architecture with multi-parameter adjustability and automated electronic/thermal control

All-PM Fiber Seed Source Design for superior environmental adaptability

Product Advantages

Dual-Wavelength Output

Femtosecond-Level Pulse Output (minimum down to 50 fs)

Distributed Chirp Management for near Fourier-transform-limited pulse output

Modular Architecture with multi-parameter adjustability and automated electronic/thermal control

All-PM Fiber Seed Source Design for superior environmental adaptability

Application Fields

01 Quantum Optics & Photonic Quantum Computing

02 Precision Ranging & Optical Frequency Comb Light Sources

03 Super-Resolution Imaging & Spectroscopy

04 Pump-Probe Spectroscopy Systems & Asynchronous Sampling Systems

05 Optical Communications & Semiconductor Device Testing

06 Ultrafast & Nonlinear Process Research

07 Micro/Nano-Fabrication & Precision Processing

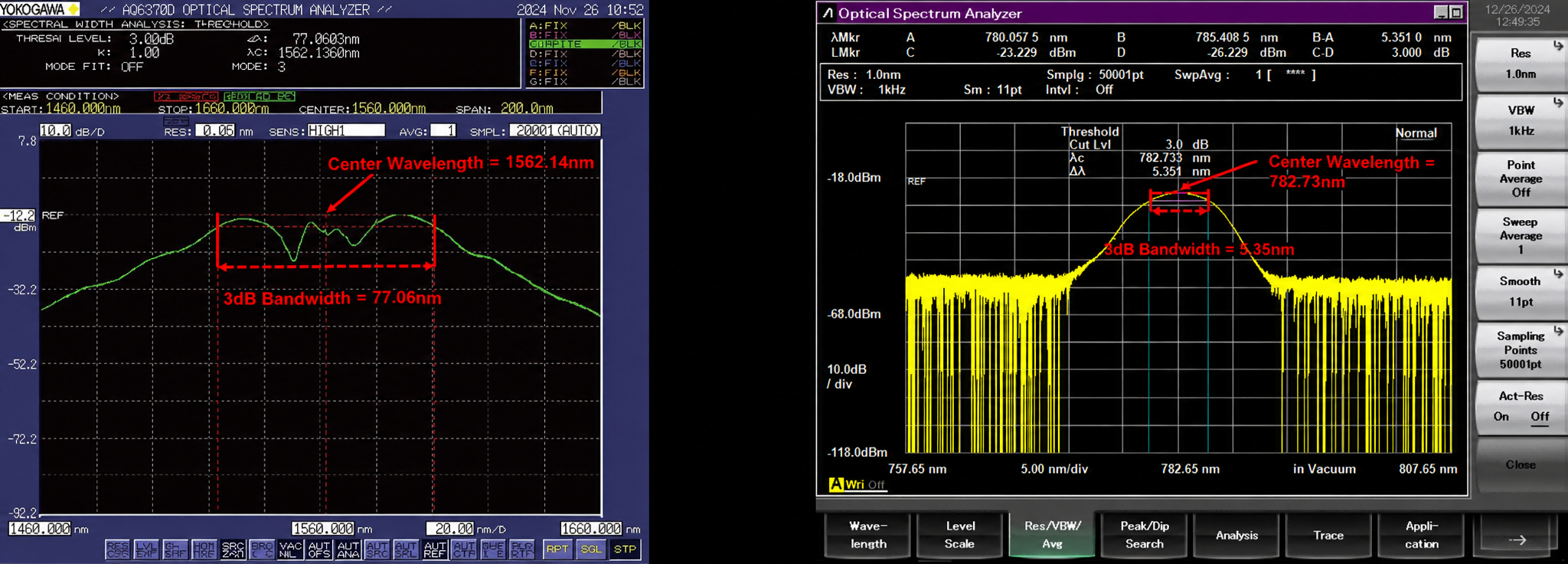

1560 nm & 780 nm Laser Output Spectrum

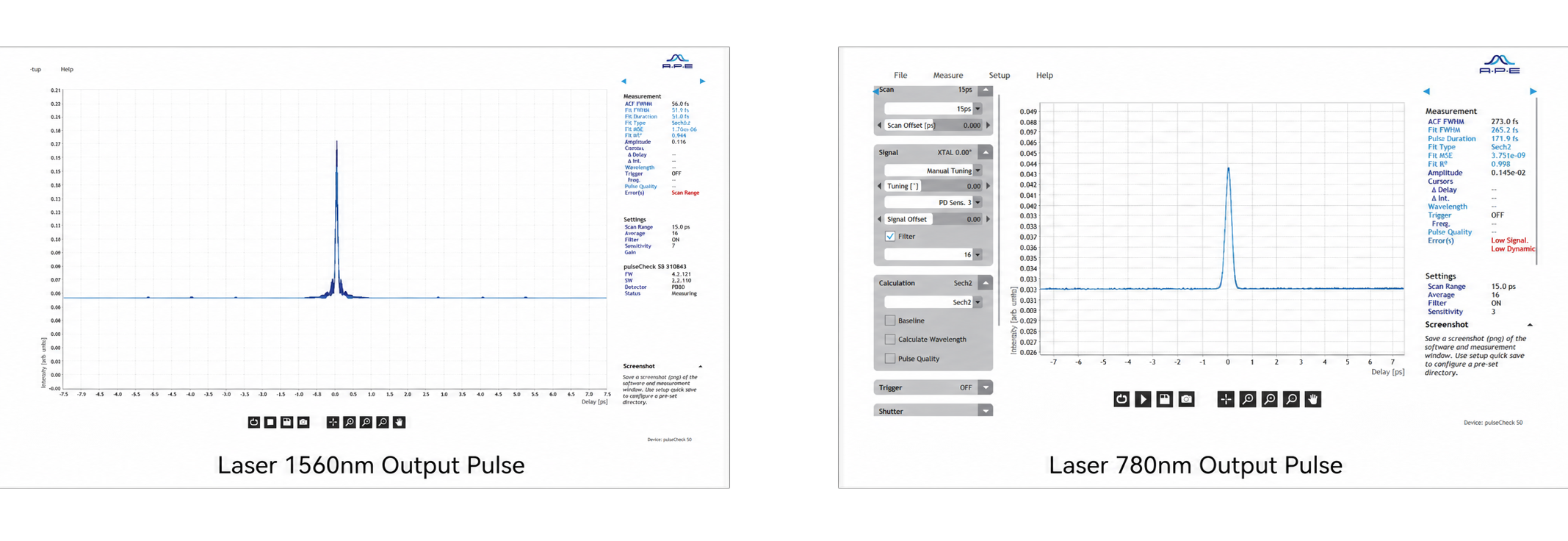

1560 nm & 780 nm Laser Output Pulse Profiles

Application Fields

01 Quantum Optics & Photonic Quantum Computing

02 Precision Ranging & Optical Frequency Comb Light Sources

03 Super-Resolution Imaging & Spectroscopy

04 Pump-Probe Spectroscopy Systems & Asynchronous Sampling Systems

05 Optical Communications & Semiconductor Device Testing

06 Ultrafast & Nonlinear Process Research

07 Micro/Nano-Fabrication & Precision Processing

1560 nm & 780 nm Laser Output Spectrum

1560 nm & 780 nm Laser Output Pulse Profiles

Specifications

Parameter
Specification
Center Wavelength 1560nm&780nm
Pulse Duration 80fs
Repetition Rate 80MHz
Average Output Power >150mW@1560nm;>50mW@780nm
Polarization Extinction Ratio (PER) 20dB
Pigtail Length 0.5m
Power Stability 0.1(%RMS)
Optical Interface FC/APC, Free Space
Number of Channels 2
Output Mode PM Panda Fiber & Free-Space Beam
Electronics Interface SMA/USB
Thermal Control TEC Temperature Control
Power Consumption 100W
Dimensions 230×190×80mm³
Operating Temperature 5~40℃
Operating Humidity 20%~80%RH



Specifications

Parameter
Specification
Center Wavelength 1560nm&780nm
Pulse Duration 80fs
Repetition Rate 80MHz
Average Output Power >150mW@1560nm;>50mW@780nm
Polarization Extinction Ratio (PER) 20dB
Pigtail Length 0.5m
Power Stability 0.1(%RMS)
Optical Interface FC/APC, Free Space
Number of Channels 2
Output Mode PM Panda Fiber & Free-Space Beam
Electronics Interface SMA/USB
Thermal Control TEC Temperature Control
Power Consumption 100W
Dimensions 230×190×80mm³
Operating Temperature 5~40℃
Operating Humidity 20%~80%RH



Service System

Pre-sales Consultation

  • Provide professional pre-sales consultation services to help customers understand product features and advantages.
  • Offer technical support to address inquiries regarding technical details and performance metrics.

Customized Solutions

  • Deliver tailored solutions to ensure the product maximally fulfills specific customer application requirements.

Installation & Commissioning

  • Provide on-site or remote installation guidance and commissioning services based on customer needs to ensure smooth operation.

After-Sales & Maintenance

  • Provide fast-response after-sales technical support to resolve operational issues.
  • Offer regular maintenance services to maintain optimal product performance and stability.
  • Free repair services during the warranty period.
