Ultra-Narrow Linewidth Laser



The 780 nm Narrow Linewidth Laser integrates a low-noise seed source, low-noise fiber amplification technology, and high-efficiency frequency doubling. It delivers an output power exceeding 2 W with a linewidth under 5 kHz and a 24-hour frequency drift below 100 MHz.

Its all-fiber design makes the laser highly insensitive to ambient temperature fluctuations and mechanical vibrations, making it an ideal light source for entangled source generation, laser cooling of atoms, atomic quantum manipulation, and rubidium (Rb) atom detection. High output power enables a larger number of cold atoms, broader light-atom interaction areas, and more uniform optical forces. Low frequency drift ensures longer and more stable Doppler-free frequency locking to Rb atoms. Ultra-narrow linewidth significantly reduces atomic detection noise to achieve higher signal-to-noise ratios (SNR). Furthermore, its robust environmental stability is of vital importance in applications such as atomic clocks, atomic magnetometers, as well as atomic interferometer-based gravimeters, gyroscopes, and gravity gradiometers.

Business Inquiry >>

Product Highlights

High-Power Narrow-Linewidth Output: Output power ≥2W, linewidth <5kHz, satisfying high-precision experimental demands in cold atoms, entangled photon sources, and atomic quantum control.

Long-Term Frequency Stability: 24-hour frequency drift <100MHz, power fluctuation ≤3%@24h, perfectly suited for long-term continuous operation in atomic clocks, magnetometers, gravimeters, and gyroscopes.

All-Fiber Integrated Architecture: Combines a low-noise seed source, fiber amplifier, and high-efficiency frequency doubler. Insensitive to temperature and vibration, offering high reliability and low maintenance.

Tunable Center Wavelength: Single-frequency, mode-hop-free tuning with beam quality M²≤1.1, allowing easy matching with various experimental and system requirements.

Product Highlights

High-Power Narrow-Linewidth Output: Output power ≥2W, linewidth <5kHz, satisfying high-precision experimental demands in cold atoms, entangled photon sources, and atomic quantum control.

Long-Term Frequency Stability: 24-hour frequency drift <100MHz, power fluctuation ≤3%@24h, perfectly suited for long-term continuous operation in atomic clocks, magnetometers, gravimeters, and gyroscopes.

All-Fiber Integrated Architecture: Combines a low-noise seed source, fiber amplifier, and high-efficiency frequency doubler. Insensitive to temperature and vibration, offering high reliability and low maintenance.

Tunable Center Wavelength: Single-frequency, mode-hop-free tuning with beam quality M²≤1.1, allowing easy matching with various experimental and system requirements.

Application Fields

01 Gravimeters

02 Atomic Clocks

03 Magnetometers

04 Entanglement Sources

Application Fields

01 Gravimeters

02 Atomic Clocks

03 Magnetometers

04 Entanglement Sources

Specifications

Parameter
Specification
Center Wavelength 765~790nm
Output Power 1~2W
Power Output Range 10~100%
Laser Output Type Continuous Wave (CW), Single-Frequency Single-Transverse-Mode
Beam Quality () ≤1.1

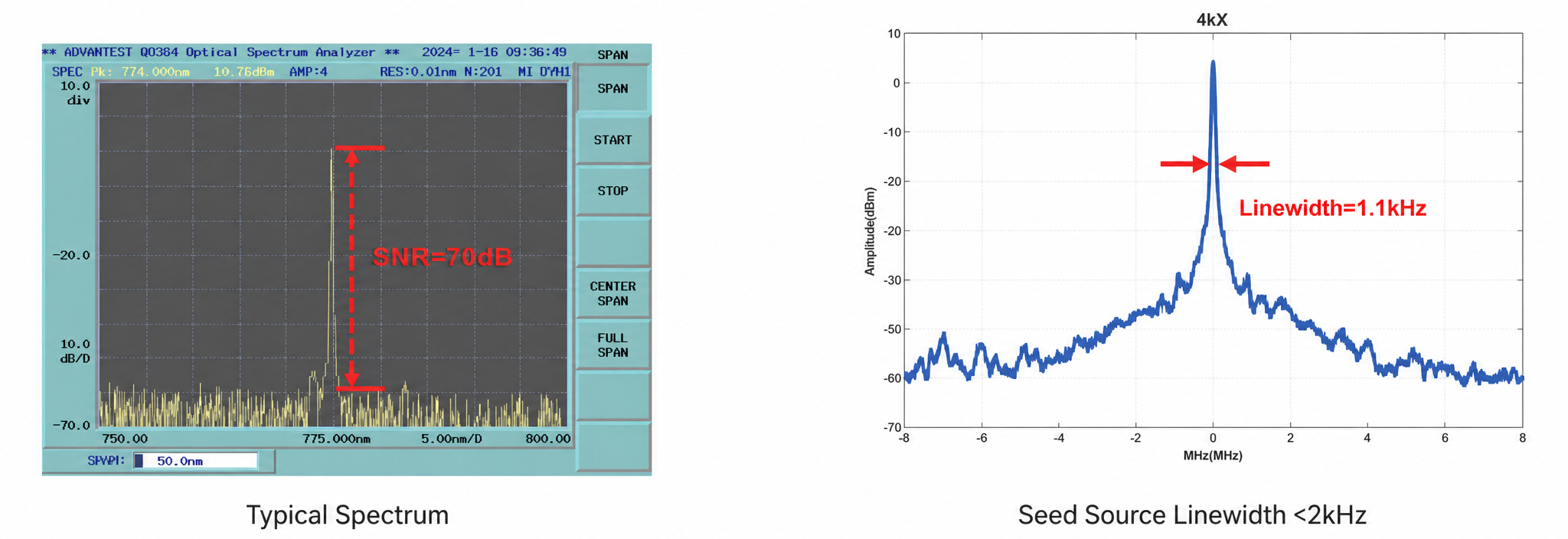

Seed Source Linewidth (@ 50 km delay line) ≤1.5kHZ
Polarization Extinction Ratio (PER) ≤23dB

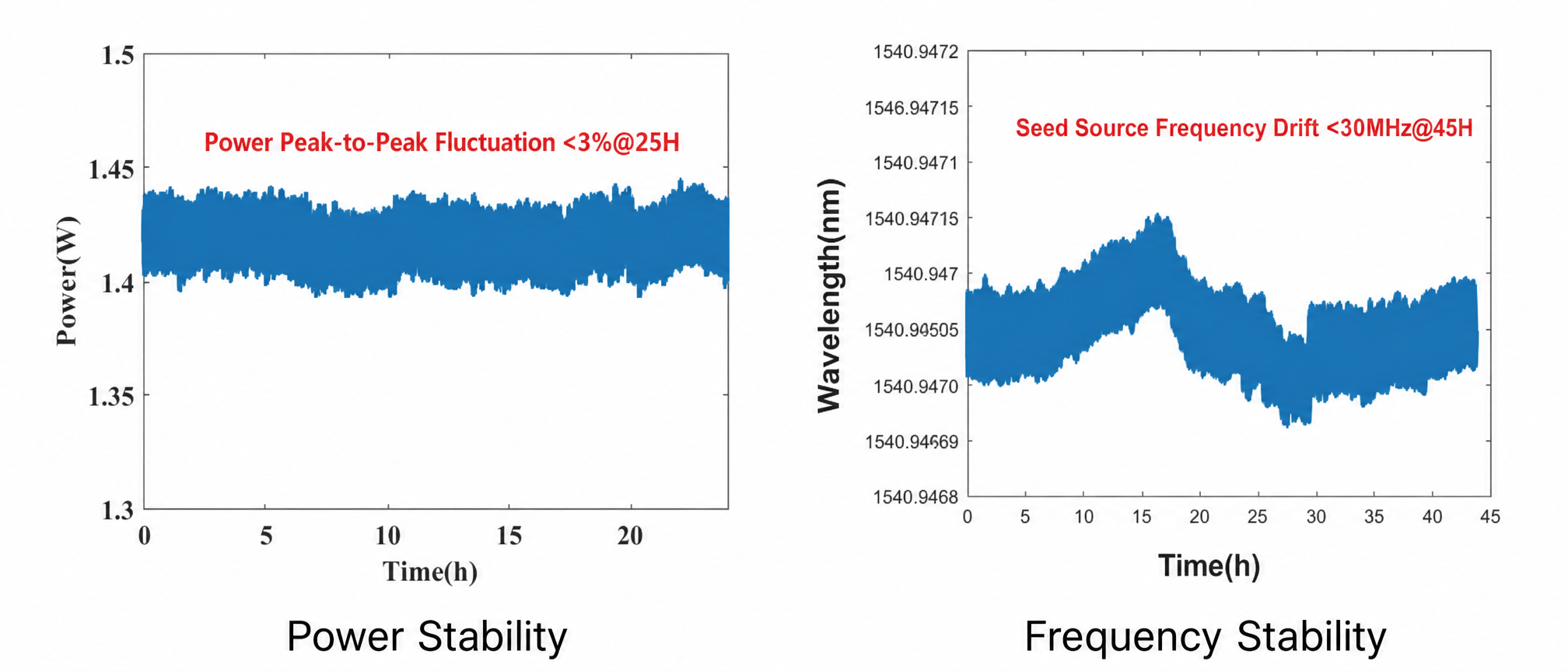

Power Stability ≤3%
Center Wavelength Drift (@ 24h) ≤100MHz
PZT Modulation Frequency ≥DC

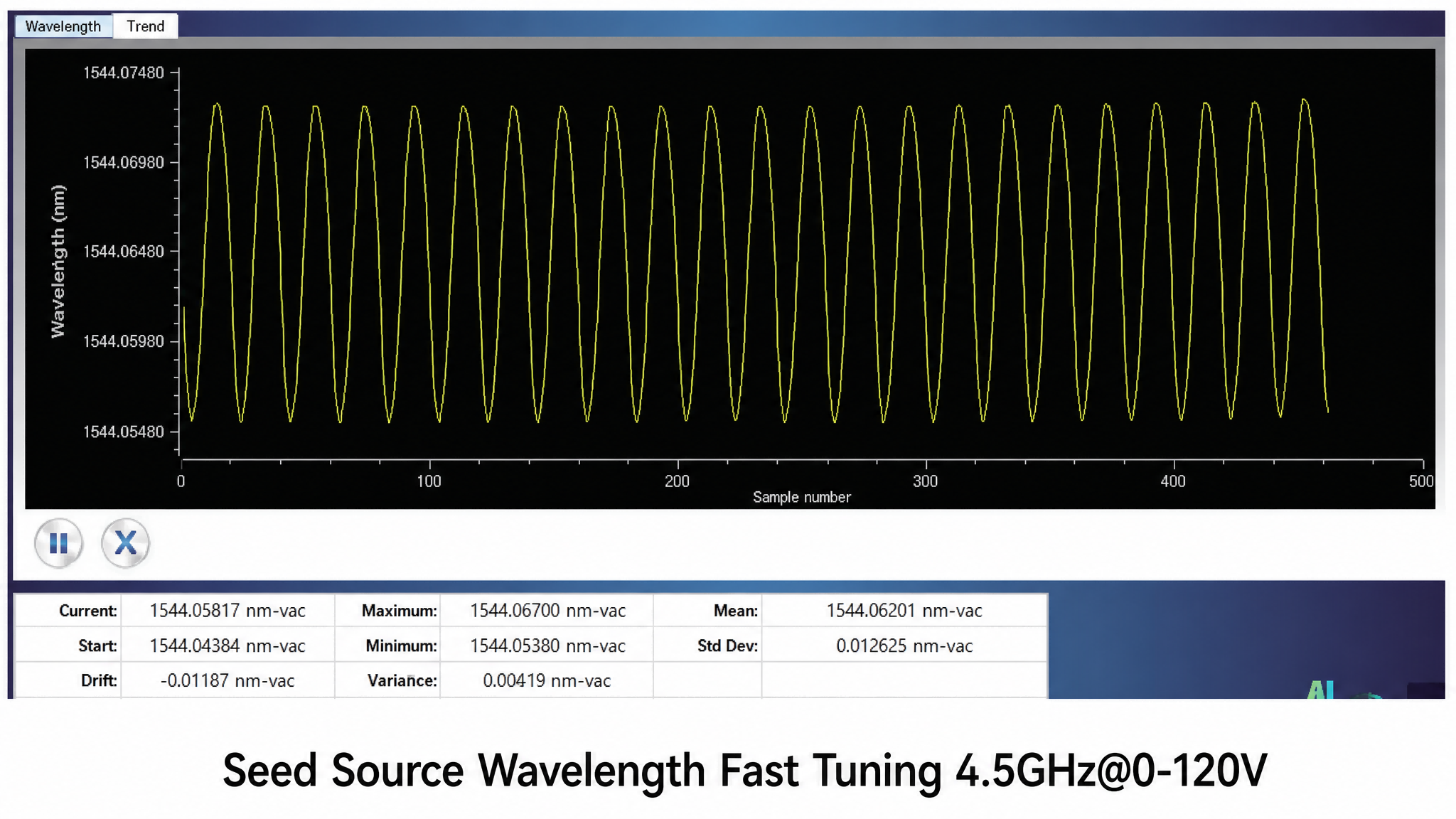

PZT Tuning Wavelength Range >10GHz
Optical Signal-to-Noise Ratio (OSNR) ≥60dB
Cooling Method Air Cooling
Output Mode PM Panda Fiber
Dimensions 483×420×149mm³
Optical Interface FC/APC
Electrical Interface DSUB
Operating Temperature 0~40℃
Operating Humidity 20~80%RH



Specifications

Parameter
Specification
Center Wavelength 765~790nm
Output Power 1~2W
Power Output Range 10~100%
Laser Output Type Continuous Wave (CW), Single-Frequency Single-Transverse-Mode
Beam Quality () ≤1.1
Seed Source Linewidth (@ 50 km delay line) ≤1.5kHZ
Polarization Extinction Ratio (PER) ≤23dB
Power Stability ≤3%
Center Wavelength Drift (@ 24h) ≤100MHz
PZT Modulation Frequency ≥DC
PZT Tuning Wavelength Range >10GHz
Optical Signal-to-Noise Ratio (OSNR) ≥60dB
Cooling Method Air Cooling
Output Mode PM Panda Fiber
Dimensions 483×420×149mm³
Optical Interface FC/APC
Electrical Interface DSUB
Operating Temperature 0~40℃
Operating Humidity 20~80%RH



Service System

Pre-sales Consultation

  • Provide professional pre-sales consultation services to help customers understand product features and advantages.
  • Offer technical support to address inquiries regarding technical details and performance metrics.

Customized Solutions

  • Deliver tailored solutions to ensure the product maximally fulfills specific customer application requirements.

Installation & Commissioning

  • Provide on-site or remote installation guidance and commissioning services based on customer needs to ensure smooth operation.

After-Sales & Maintenance

  • Provide fast-response after-sales technical support to resolve operational issues.
  • Offer regular maintenance services to maintain optimal product performance and stability.
  • Free repair services during the warranty period.
