Single-Photon Interference Module



The Single-Photon Interference Experimental Module is a sub-module of the quantum entanglement system. It utilizes the quantum entanglement system as a "heralded single-photon source" to generate single photons. In the single-photon interference experiment, the module directs one channel of the generated single photons into a Michelson interferometer. By measuring the photon detection probability at the output and adjusting the optical path length of one of the interferometer arms, users can observe the phenomenon of single-photon interference through changes in photon counts.

This module helps experimenters gain a deep understanding of single-photon interference principles and intuitively verify quantum interference phenomena. It is highly suitable for foundational teaching and laboratory construction in university quantum optics and quantum information courses, effectively supporting talent cultivation and scientific research in related fields.

Business Inquiry >>

Product Advantages

High-Brightness Single-Photon Source

High Interference Visibility

Easy Operation

Compact Modular Design

Low Accidental Coincidence Count

Product Advantages

High-Brightness Single-Photon Source

High Interference Visibility

Easy Operation

Compact Modular Design

Low Accidental Coincidence Count

Experimental Content

01 Preparation of the Single-Photon Source

02 Single-Photon Interference Alignment

03 Plotting Single-Photon Interference Patterns

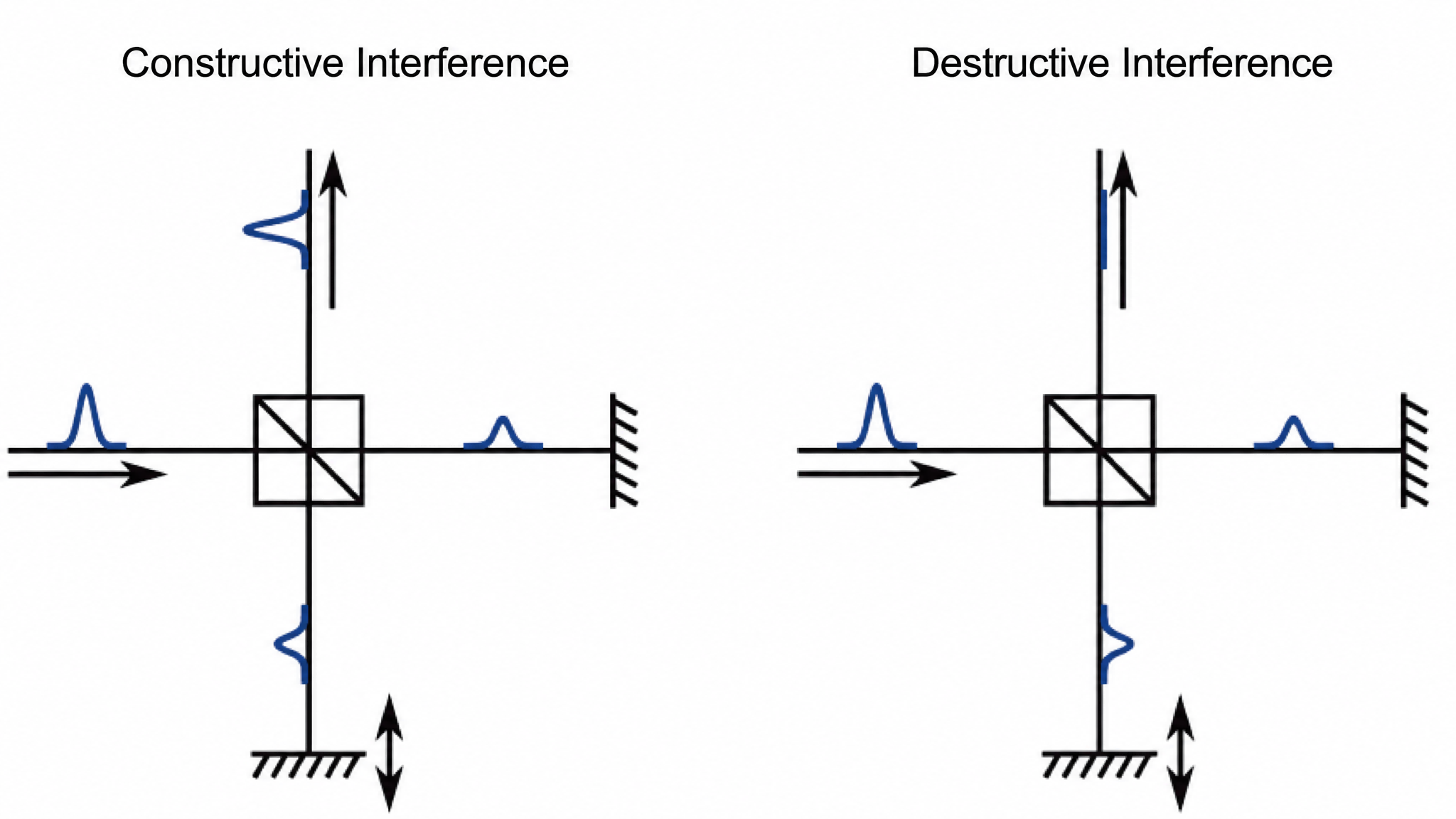

Single-Photon Interference Schematic

Experimental Content

01 Preparation of the Single-Photon Source

02 Single-Photon Interference Alignment

03 Plotting Single-Photon Interference Patterns

Single-Photon Interference Schematic

Specifications

Parameter Specification
Single-Photon Source Brightness >8×10⁴ cps
Interference Photon Brightness >8×10³ cps
Interference Visibility >75%
Coherence Length >30 μm
Translation Stage Precision 10 μm
Software Features Count display, coincidence counting, data acquisition & saving, experiment selection, demo videos
Dimensions 335×290×105 mm³
Weight 6 kg
Operating Temperature 25±5 ℃
Operating Humidity 0%~45% RH



Specifications

Parameter Specification
Single-Photon Source Brightness >8×10⁴ cps
Interference Photon Brightness >8×10³ cps
Interference Visibility >75%
Coherence Length >30 μm
Translation Stage Precision 10 μm
Software Features Count display, coincidence counting, data acquisition & saving, experiment selection, demo videos
Dimensions 335×290×105 mm³
Weight 6 kg
Operating Temperature 25±5 ℃
Operating Humidity 0%~45% RH



Educational Scenarios

Educational Scenarios
