Two-Photon Interference Experimental Module



The Two-Photon Interference Experimental Module is a sub-module of the quantum entanglement system. It utilizes the quantum entanglement system as a "heralded single-photon source" to generate single photons. In the two-photon interference experiment, linear optical elements adjust two photon paths to zero optical path difference (OPD), preparing identical photon pairs before inputting them into a beam splitter (BS). This demonstrates quantum two-photon interference phenomena (Hong-Ou-Mandel effect)—fundamentally distinct from classical optical interference.

This module helps experimenters gain a deep understanding of two-photon interference principles and intuitively verify quantum interference phenomena. It is highly suitable for foundational teaching and laboratory construction in university quantum optics and quantum information courses, effectively supporting talent cultivation and scientific research in related fields.

Business Inquiry >>

Product Advantages

High-Brightness Single-Photon Source

High Interference Visibility

Easy Operation

Compact Modular Design

Low Accidental Coincidence Count

Product Advantages

High-Brightness Single-Photon Source

High Interference Visibility

Easy Operation

Compact Modular Design

Low Accidental Coincidence Count

Experimental Content

01 Preparation of the Single-Photon Source

02 Two-Photon Interference Alignment

03 Plotting Two-Photon Interference Patterns

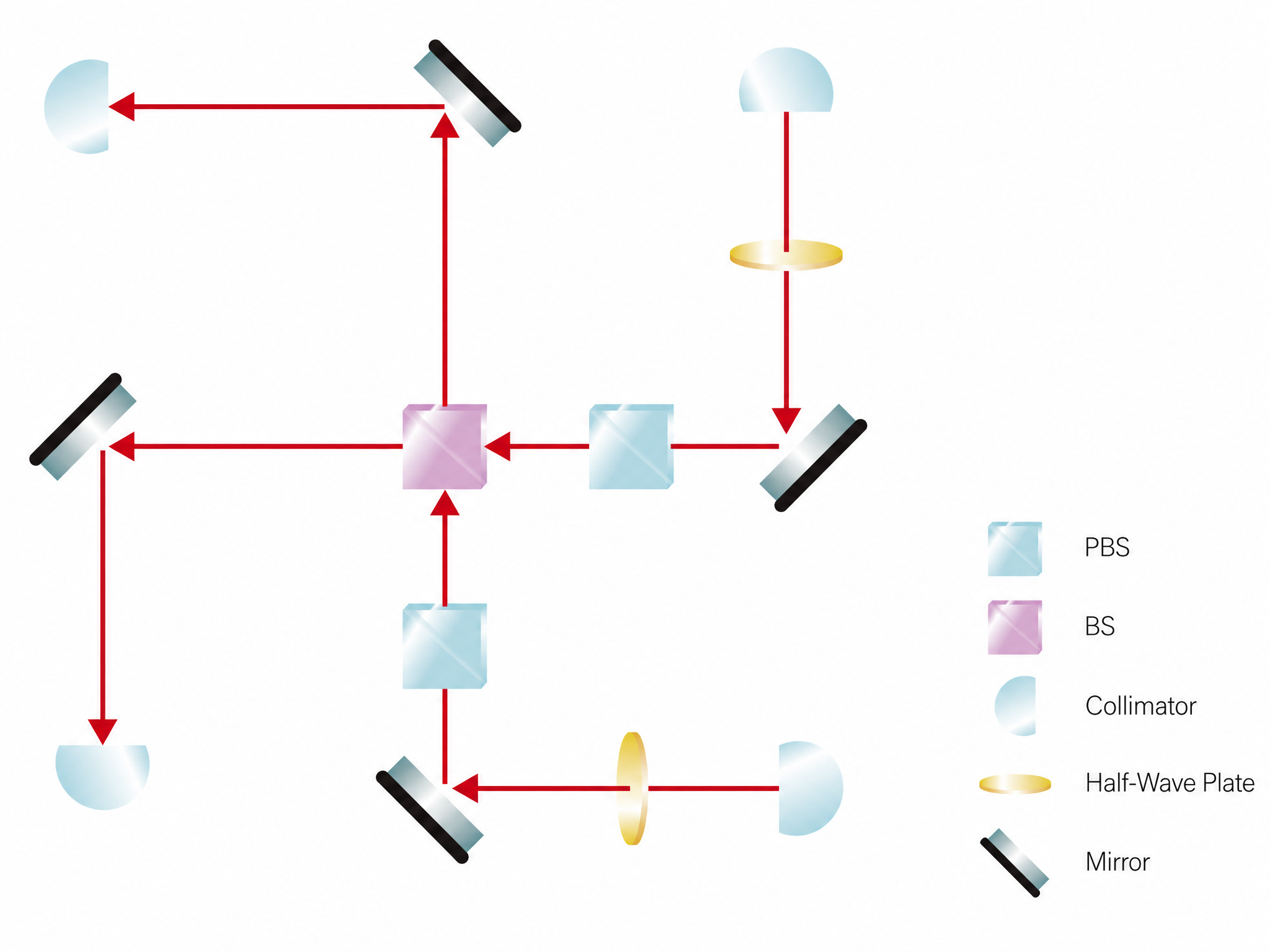

Two-Photon Interference Optical Path Schematic

Experimental Content

01 Preparation of the Single-Photon Source

02 Two-Photon Interference Alignment

03 Plotting Two-Photon Interference Patterns

Two-Photon Interference Optical Path Schematic

Specifications

Parameter Specification
Single-Photon Source Brightness >8×10⁴ cps
Interference Photon Brightness >150 cps
Interference Visibility >65%
Coherence Length >30 μm
Translation Stage Precision 10 μm
Software Features Count display, coincidence counting, data acquisition & saving, experiment selection, demo videos
Dimensions 400×400×125 mm³
Weight 9 kg
Operating Temperature 25±5 ℃
Operating Humidity 0%~45% RH



Specifications

Parameter Specification
Single-Photon Source Brightness >8×10⁴ cps
Interference Photon Brightness >150 cps
Interference Visibility >65%
Coherence Length >30 μm
Translation Stage Precision 10 μm
Software Features Count display, coincidence counting, data acquisition & saving, experiment selection, demo videos
Dimensions 400×400×125 mm³
Weight 9 kg
Operating Temperature 25±5 ℃
Operating Humidity 0%~45% RH



Educational Scenarios

Educational Scenarios
